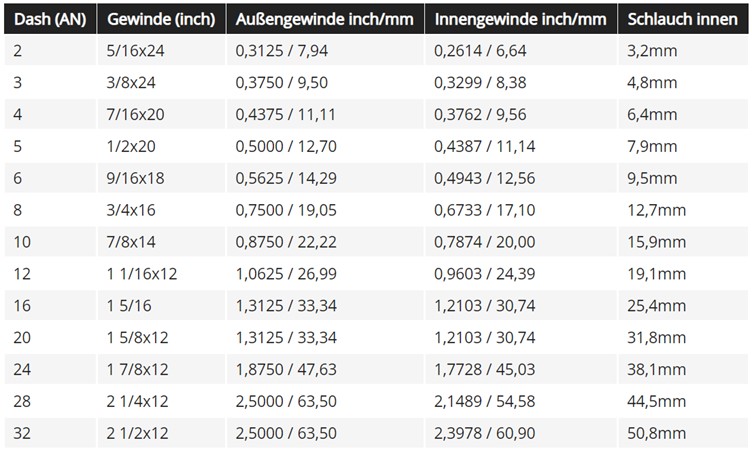

The following table shows the thread dimensions and the corresponding internal hose diameters. Small tolerances are possible for the hoses. For oil supply lines we recommend -4 AN with 6mm hose and for return lines at least -10AN with 16mm hose inner diameter.
